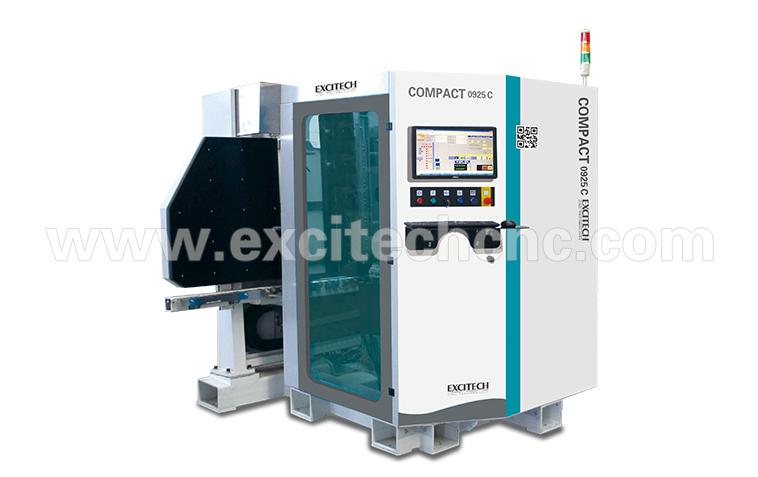

Factory Supply Foam Board Laser Cutter - Drilling Technologies Compact 0925 – EXCITECH Detail:

◆ Although compact in construction, this vertical drilling machine is uncompromising on its rigidity, thanks to its well-balanced structure and precision-engineered frame.
◆ The automatic gripper supports and holds the panel firmly in place while moving the workpiece with flexibility and ease. The air table ensures no wear on the panels.
◆ Configured with an independent spindle and a boring unit with 9 vertical drills, 6 horizontal ones and a saw blade, this machine is a perfect solution that marries versatility and efficiency in just 10㎡ of space.
◆ Adopting the cutting edge digital driving technologies, this machine is further improved in its reliability.

c02 c3 c04 c05



Series

COMPACT 0925

 COMPACT0925C

Traveling Size

900*1300*180mm

900*1300*180mm

Max Panel Dimensions

2500*900*36mm

2500*900*36mm

Min Panel Dimensions

200*50*10mm

200*50*10mm

Transmission

X/Y rack and pion drive, Z ball Screw drive

X/Y rack and pion drive, Z ball Screw drive

Table Structure

Air Floatiation Table

气浮台面

Spindle Power

5.5KW

9.6KW

Spindle Speed

18000r/min

24000r/min

Traveling Speed

80/60/25m/min

80/60/25m/min

Drill Bank Config.

9 vertical+6 Horizontal+1 saw

9 vertical+6 Horizontal+1 saw

Driving System

Yaskawa

Yaskawa

Voltage

AC380/3PH/50HZ

AC380/3PH/50HZ

Controller

OSAI

OSAI




Product detail pictures:

Factory Supply Foam Board Laser Cutter -
 Drilling Technologies Compact 0925 – EXCITECH detail pictures


Related Product Guide:
Drilling Machines and Milling Machines – What Are the Differences?
Want to Purchase a Drilling Machine?

Assume full responsibility to meet all demands of our clients; achieve continuous advancements by promoting the growth of our clients; become the final permanent cooperative partner of clients and maximize the interests of clients for Factory Supply Foam Board Laser Cutter - Drilling Technologies Compact 0925 – EXCITECH, The product will supply to all over the world, such as: Argentina , New York , Hungary , For anyone who is keen on any of our items right after you view our product list, you should definitely feel absolutely free to get in touch with us for inquiries. You are able to send us emails and contact us for consultation and we shall respond to you as soon as we can. If it's easy, you may locate out our address in our web-site and come to our business for far more information of our merchandise by your self. We're always ready to construct extended and steady co-operation relations with any possible customers in the related fields.

After-sales service telephone

  • We provide 12 months warranty for the machine.
  • Consumable parts will be replaced free during the warranty.
  • Our engineer could provide technology support and training for you in your country, if necessary.
  • Our engineer could service for you 24 hours online, by Whatsapp,Wechat,FACEBOOK, LINKEDIN,TIKTOK,cell phone hot line.

The cnc center is to be packed with plastic sheet for cleaning and damp proofing.

Fasten the cnc machine into the wood case for safety and against clashing.

Transport the wood case into the container.
